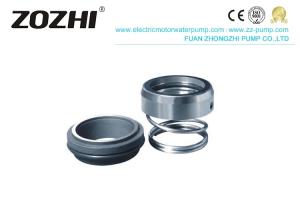

Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K

  • 1
  • 2

Brand Name : ZOZHI

Model Number : M1K

Certification : CE, ISO9001

Place of Origin : FUAN

MOQ : 10pcs

Price : negotiated

Supply Ability : 3000000pcs per month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons

Size : Standard Size

Product name : Mechanical Seal

Feature : Rubber Bellows Mechanical Seal

Speed : 10m/sec

Application : Water pump;Ruducer

Pressure : ≤1.0Mpa

Material Type : SIC/ INSERTED TC

Working temp : -20~150℃

Contact Now

Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K

Mechanical Seal

Design Features

Single face, unbalanced structure and driven by conical spring, another side of closed coil locked on the shaft, spring-wound collected with an axial wound of the pump.

The installation dimensions conform to the standard of GB6556, ISO3069, and DIN24960. Which have a wide application range

Materials(to DIN24960)

Rotary Ring: E, G, Q22, U12
Stationary Ring: B, Q22, U12
Auxiliary Seal: P, E, V
Spring and Other Parts: F, G


Operating limits

Temperature: -20~150℃
Pressure: ≤ 1.0MPa
Speeds: ≤10m/sec
Viscosity: ≤1.0Pa.s (1000cp)(Solt VS Hard)
≤3.5Pa.s (3500cp)(Solt VS Hard)

Applications

Used in clean water, wastewater, submersible, and chemical pumps and equipment

Medium

Oil, water, and other weak corrosive fluid.

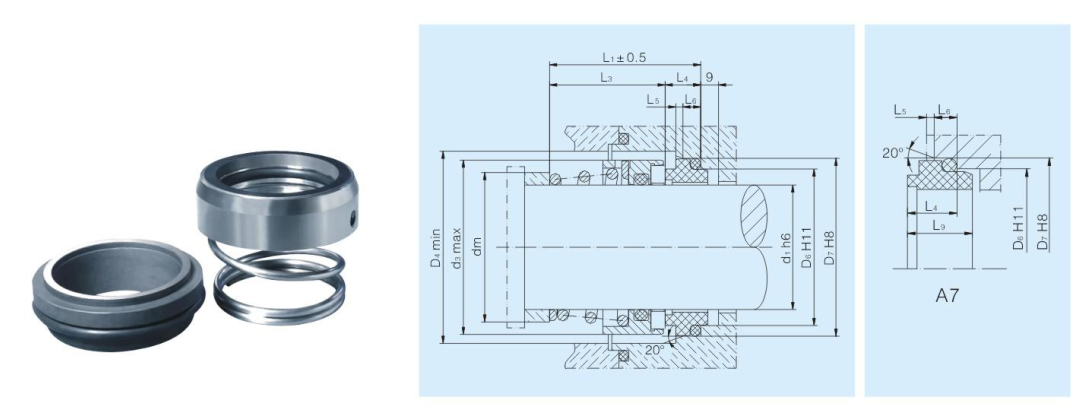

Size Information
Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K

Model d1 d3 D4 D6 D7 D8 dm L1 L3 L4 L5 L6 L9
CN M1K-18 18 32.0 34 27 33 3 22 37.5 27.5 10.0 2.0 5.0 12.0
CN M1K-22 22 36.0 38 31 37 3 27 37.5 27.5 10.0 2.0 5.0 12.0
CN M1K-24 24 38.0 40 33 39 3 29 40.0 30.0 10.0 2.0 5.0 12.0
CN M1K-25 25 39.0 41 34 40 3 30 40.0 30.0 10.0 2.0 5.0 12.0
CN M1K-30 30 44.0 46 39 45 3 36 42.5 32.5 10.0 2.0 5.0 12.0
CN M1K-35 35 49.0 51 44 50 3 42 42.5 32.5 10.0 2.0 5.0 12.0
CN M1K-38 38 56.3 58 49 56 4 45 45.0 32.0 13.0 2.0 6.0 14.5
CN M1K-40 40 56.3 60 51 58 4 47 45.0 32.0 13.0 2.0 6.0 14.5
CN M1K-43 43 59.3 63 54 61 4 51 45.0 32.0 13.0 2.0 6.0 14.5
CN M1K-48 48 66.0 68 59 66 4 56 45.5 32.5 13.0 2.0 6.0 14.5
CN M1K-55 55 71.3 75 67 75 4 64 47.5 33.5 14.0 2.5 6.0 15.5
CN M1K-75 75 93.0 104 88 97 4 86 60.0 44.0 16.0 2.5 7.0 16.5

More Products

Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K
Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K
Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K

Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K

Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K

Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K
Submersible Water Pump Seal Easy Spare Parts Burgmann Mechanical Seals Type CN M1K
Mechanical Seal

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
